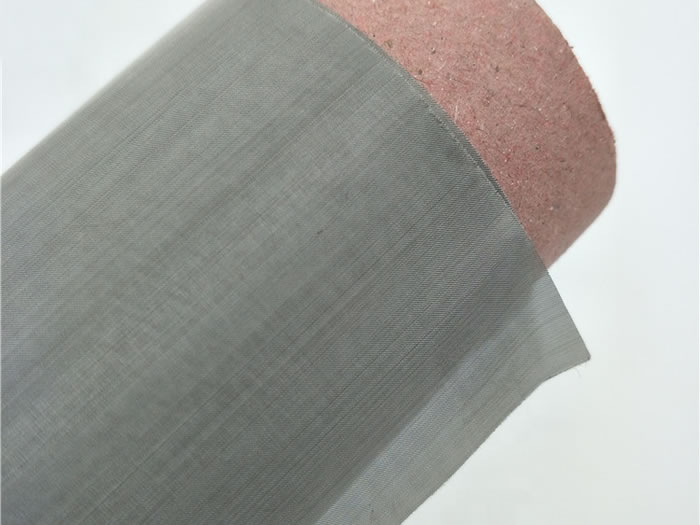

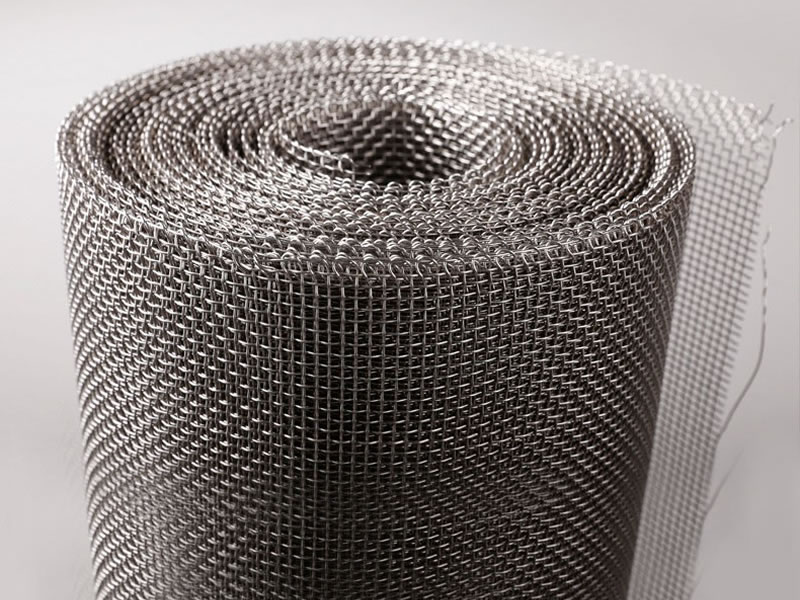

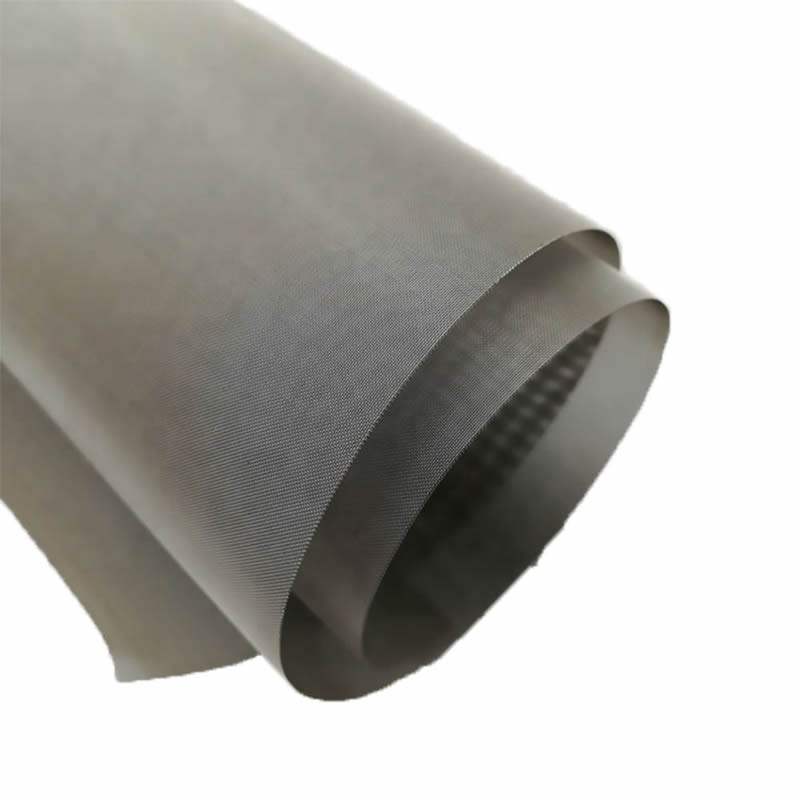

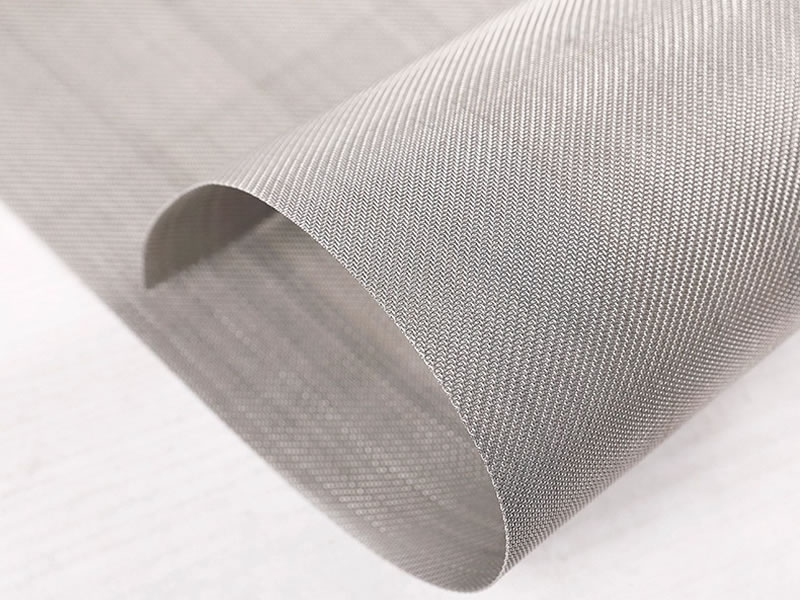

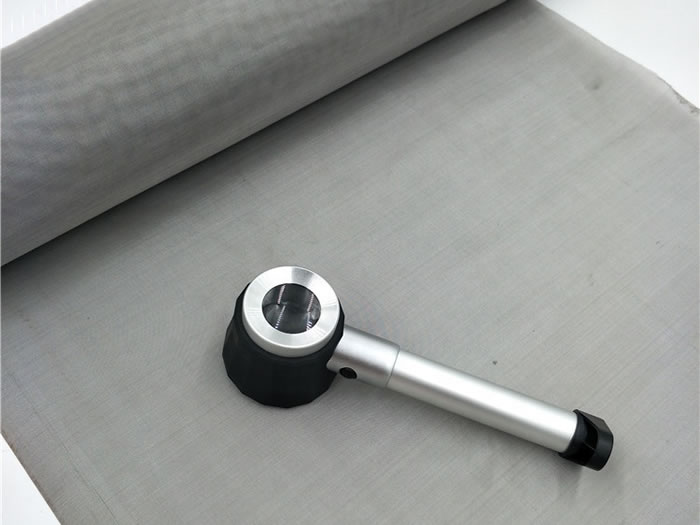

Monel is the alloy of nickel, copper and other chemical elements. According to different chemical elements, the monel woven wire mesh has Monel alloy 400 and monel alloy K500 materials.
Monel 400® wire mesh is known for its exceptional strength and resistance. It is made primarily from nickel and copper alloys and holds up under high temperatures. This high-performance mesh is typically used in marine, chemical, power generation, and aerospace environments, but it is suitable for various applications including commercial cooking, filtration, heating, boiling, dyeing, refining, demistering, and desalination. In addition, it can be easily welded, which adds to the versatility of the material.
| Typical Chemical Composition for Monel 400 Wire Mesh (in %) | |||||
| Carbon [C] (Max) | Manganese [Mn] (Max) | Iron [Fe] Max | Copper [Cu] | Nickel [Ni] | S & Si |
| 0.3 | 2 | 2.5 | 28.0-34.0 | 63.0 Min | Traces |
Monel 500® also has outstanding corrosion resistance property like the Monel alloy 400, but the Monel alloy K500 has been added aluminum, which can let the monel K500 offer greater tensile strength and hardness than the Monel alloy 400.
| Table 1: Monel K500 Wire Mesh Chemical Composition (%) | ||||||||
| Ni ≥ | Cu | Al | Ti | Fe ≤ | Mn ≤ | S ≤ | C ≤ | Si ≤ |
| 63 | 27.0–33.0 | 2.30–3.15 | 0.35–0.85 | 2 | 1.5 | 0.01 | 0.25 | 0.5 |
